AISI 321 / UNS S32100 (Austenitic) Stainless Steel
Chemistry, mechanical properties, physical properties, and practical selection notes for rolled AISI 321 products.
Performance & Use Notes
- Ti-stabilized 304-type; improved resistance to intergranular corrosion after welding or high-temperature exposure.
- Commonly selected for service in roughly the 800–1500°F range where stabilization helps.
Standards & Designations
ASTM A240 ♦ UNS S32100
Data Tables
- Ti-stabilized 304-type for improved resistance to intergranular corrosion after welding/high-temp exposure.
| Chemical composition (wt%) | Limits |
|---|---|
| C | 0.08 max |
| Cr | 17.0–19.0 |
| Ni | 9.0–12.0 |
| Ti | 5x(C+N) min to 0.70 max |
| Mn | 2.00 max |
| Si | 1.00 max |
| P | 0.045 max |
| S | 0.030 max |
| N | 0.10 max |
| Mechanical (annealed) | Requirements (min / max) |
|---|---|
| YS | 30 ksi min |
| UTS | 75 ksi min |
| Elongation | 40% min |
| Hardness | B95 max |
Values shown are typical/spec limits at room temperature unless noted; requirements vary by product form, size, and specification.
321 stainless steel from Source21 is a titanium stabilized austenitic stainless steel grade engineered for high temperature strength and long term stability in welded applications. By resisting carbide precipitation Type 321 stainless steel maintains corrosion resistance and mechanical integrity when exposed to elevated temperatures making it an excellent choice for demanding thermal environments. It is commonly used in jet engine components exhaust manifolds furnace fixtures and chemical process piping where heat resistance reliability and weld performance are critical.

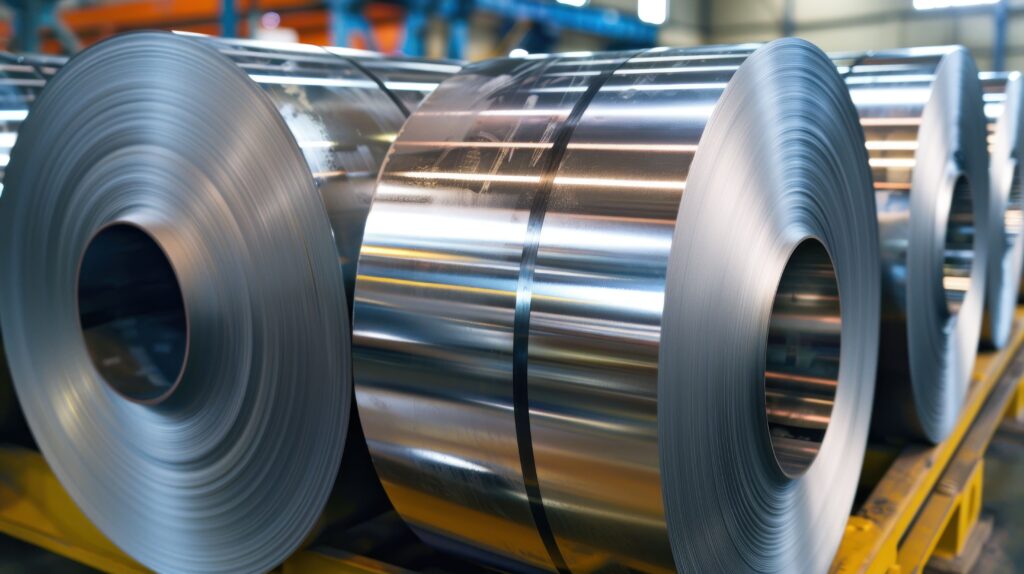

Source21 supplies 321 stainless steel in coil, strip, sheet, foil, and bar, all manufactured to meet ASTM A240, AMS 5510, and AMS 5645 standards.
Contact the Source21 team to place an order discuss material availability or receive expert guidance for high temperature stainless steel applications backed by reliable supply and responsive service.
